Product Detail

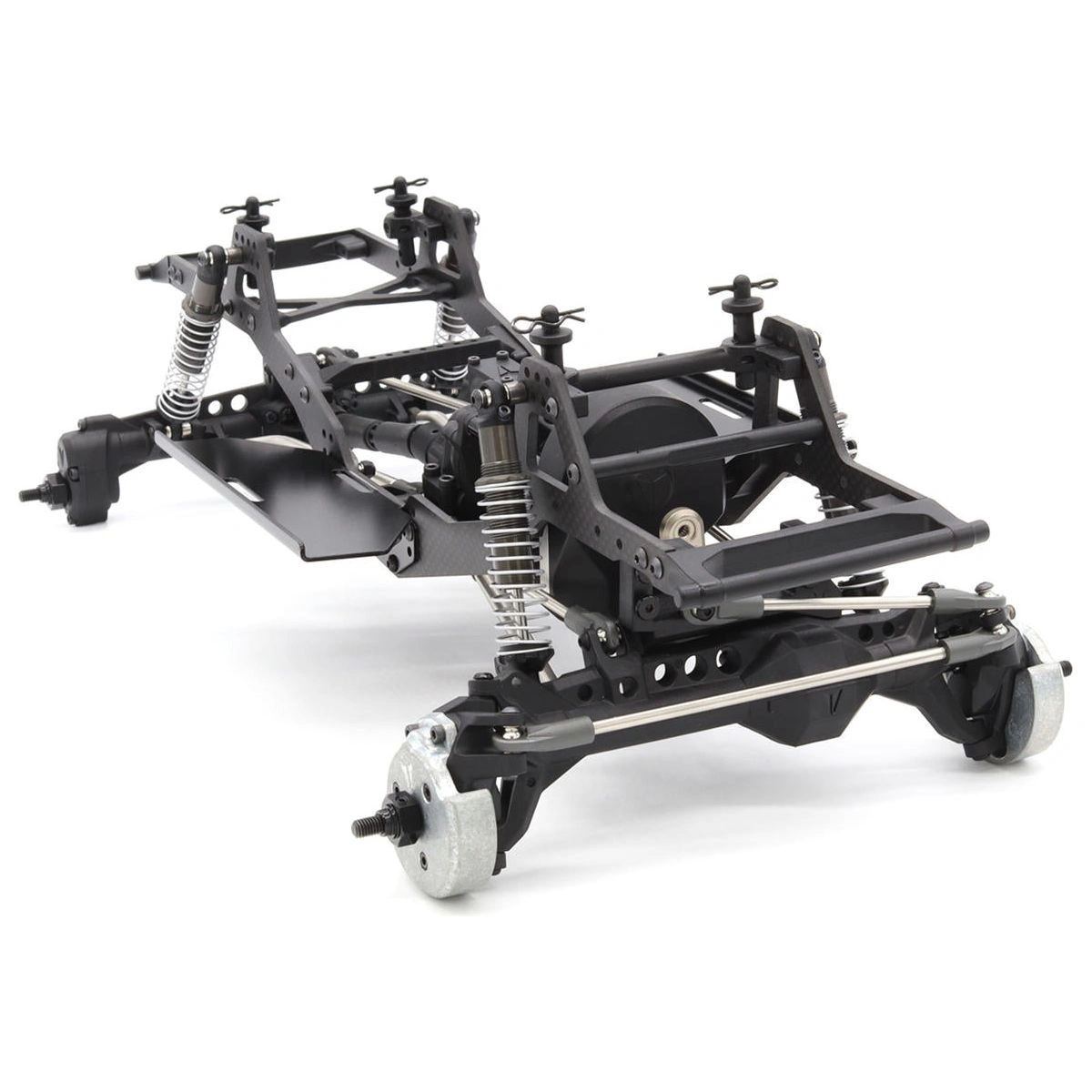

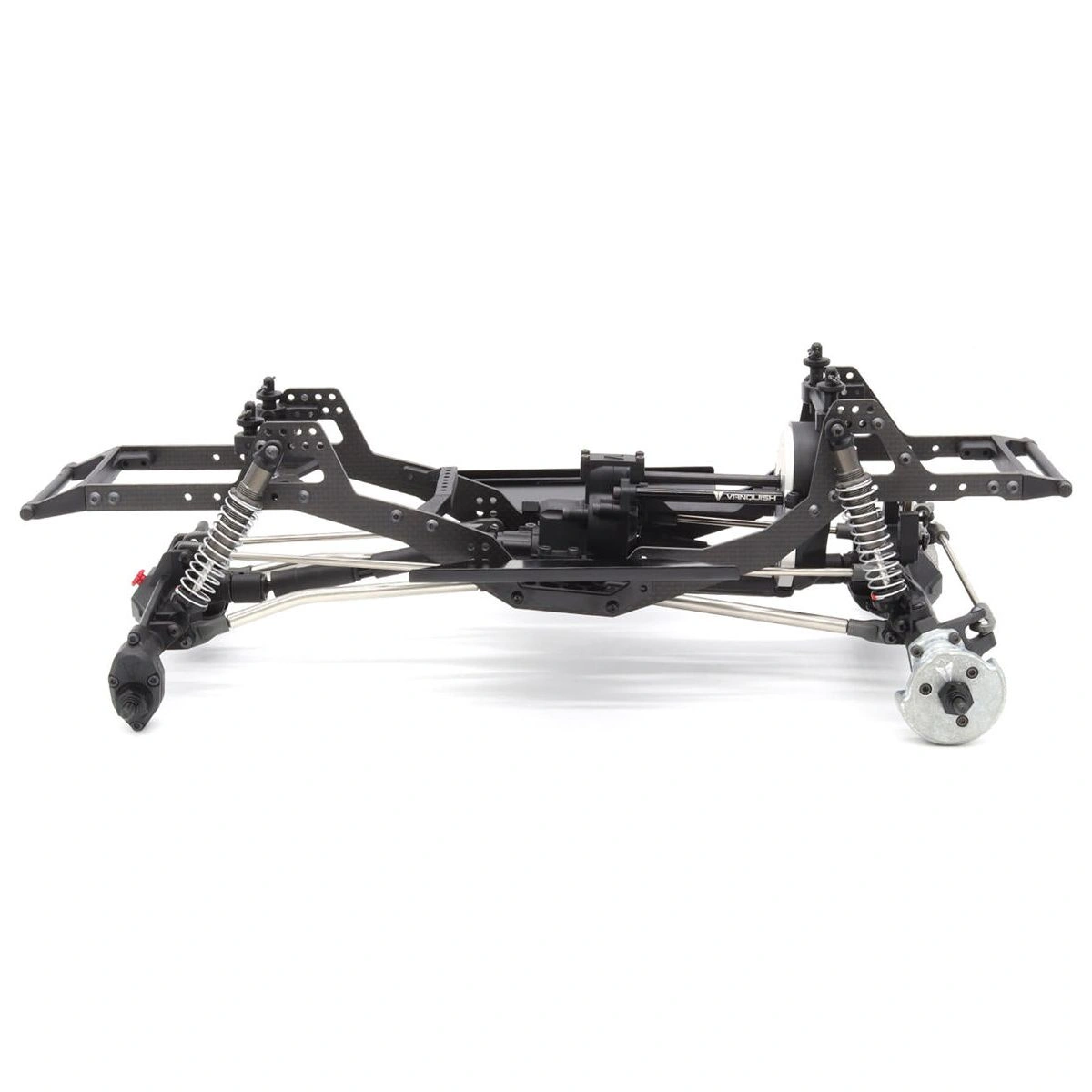

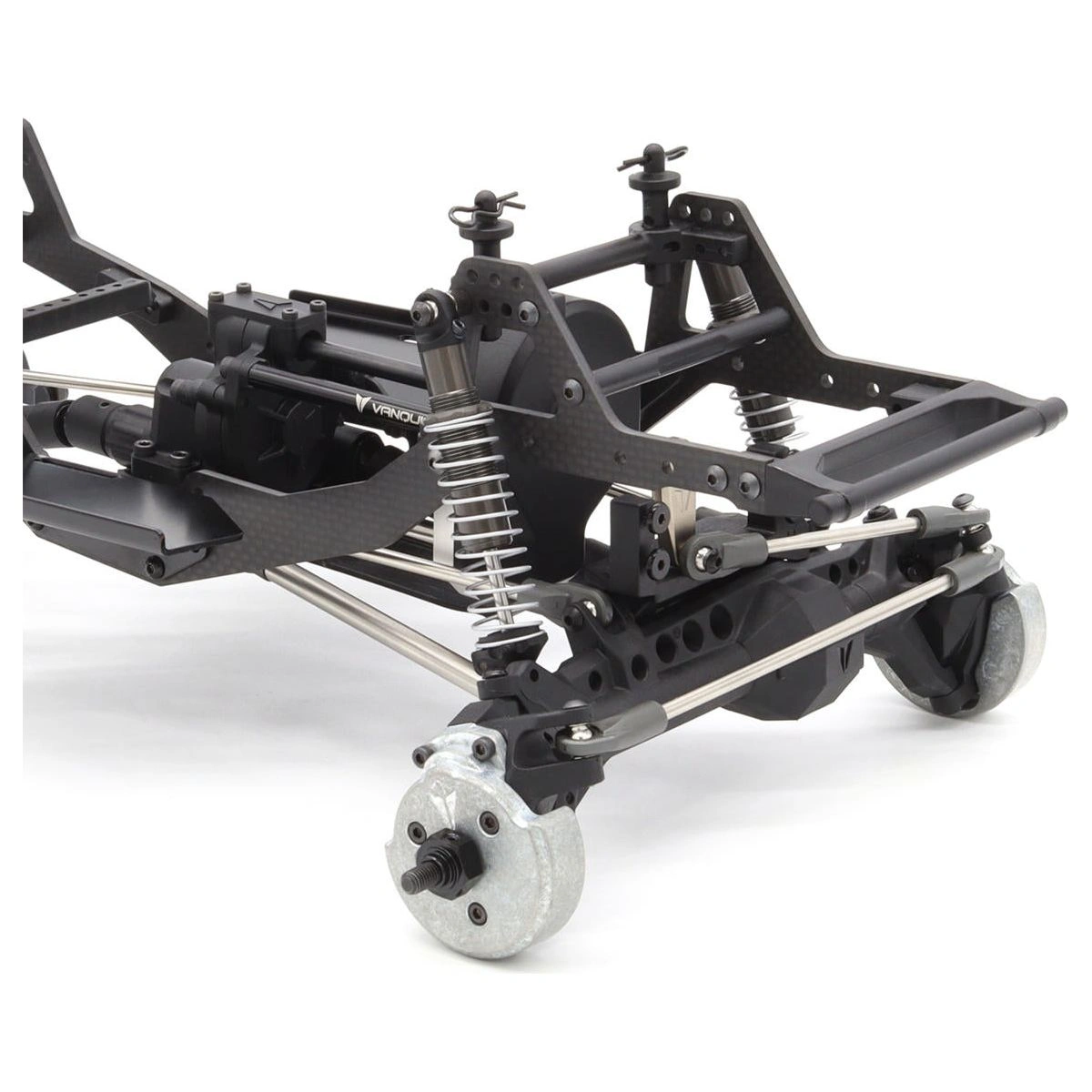

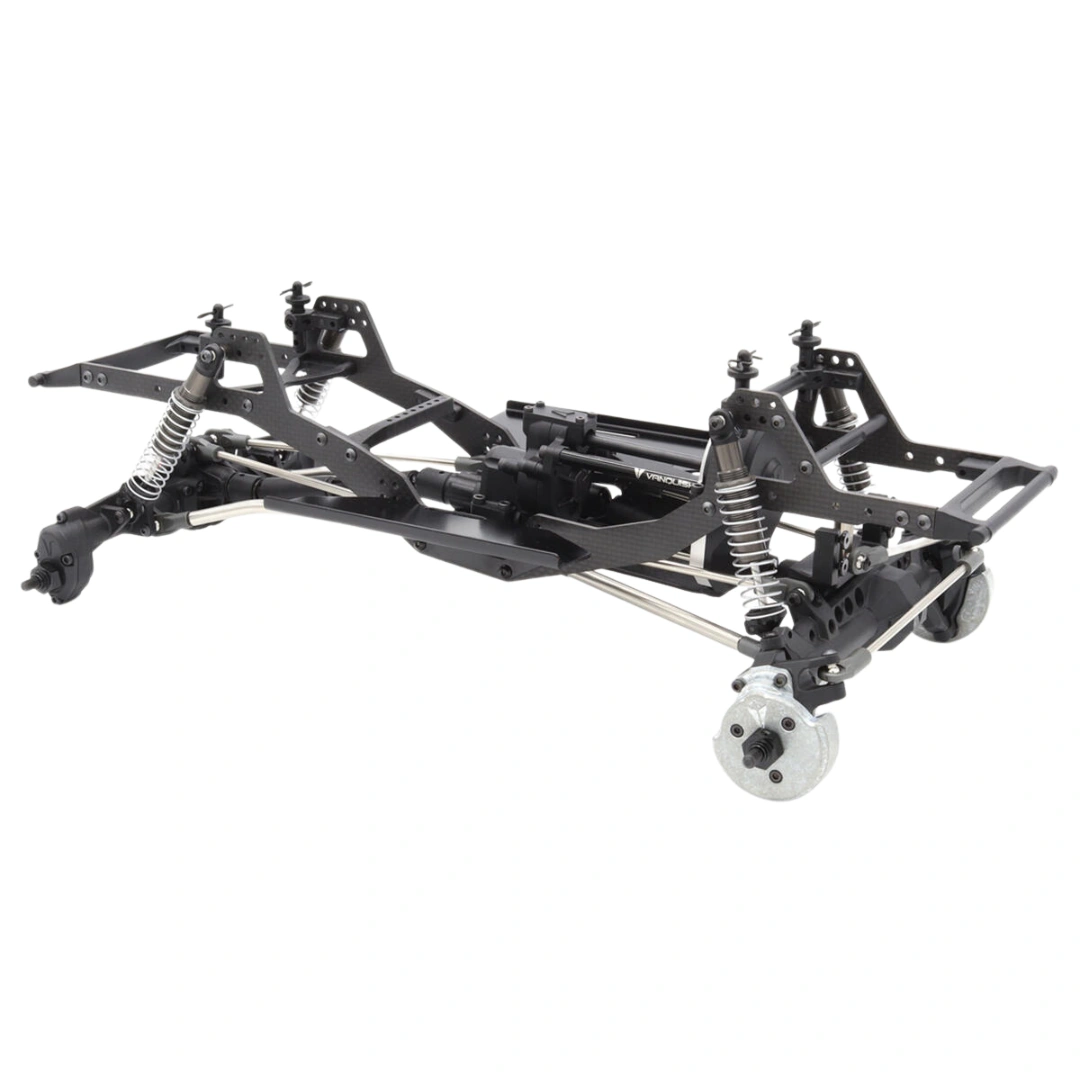

The Vanquish Products VRD Carbon Kit is our very first competition level platform brought to life by some of the industry's most experienced designers in the RC rock crawling segment. Utilizing an all new Lightweight Spec VFD Transmission and updated F10 competition inspired portal axles the VRD Carbon Kit is a highly competitive, predictable and versatile platform. The heart of the VRD Carbon Kit is a matte finish 3mm thick pair of carbon fibre frame rails mated to the 6 degree flat skid plate. The moulded chassis components and skid plate place the lightweight spec VFD transmission as low as possible into the VRD chassis. For the first time the front F10 Portal axle is equipped with a servo on axle and 4-link. Front and rear axles include weighted brass tube inserts in addition to the front alloy knuckle weights to keep the centre of gravity as low as possible, translating to a high performance driving experience.

Features

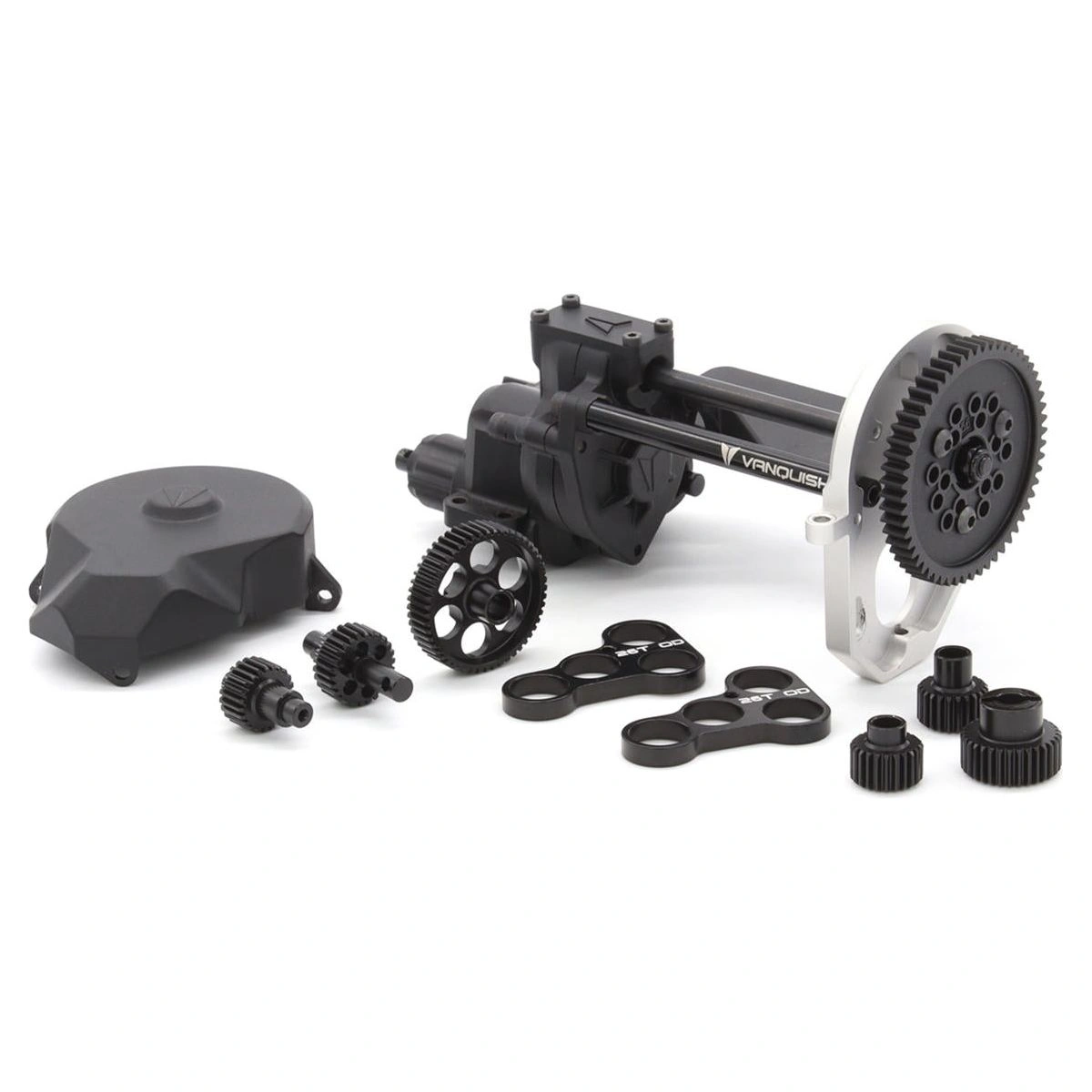

• Lightweight Spec VFD Transmission
• 3mm Matte Carbon Fibre Frame Rails - 6 degree flat skid plate
• 37% Overdrive
• F10 Portal Axles
• Brass weight tubes in axles
• Alloy heavy portal knuckle weights
• Front Axle Overdrive Portal gears
• Rear Axle Standard Portal Gears
• Lightweight Machined Chromoly VFD Transmission Gears
• Machined Spool, Ring Gear, Pinion gear in axles
• Chromoly Universal axle shafts
• Hard Anodized Shock Bodies
• Stainless Steel Links with HD Bent rear links
• Incision Pro M4 Rod Ends
• Stamped Aluminium Rock Sliders
• Adjustable multi point body mounting system
• Specifications


Specifications

• 1/10th Scale
• Front Axle Ratio 5.25:1
• Rear Axle Ratio 6.25:1
• Pinion 15T 32P
• Spur 52T 32P
• Overall Width Hex to Hex - 200mm (7.87”)
• Wheelbase - 322mm (12.67”)
• Overall Front Ratio 46.5:1
• Overall Rear Ratio 68:1
• Final Overdrive 37%

Requires

• Tools
• Paint
• Comp Style Body
• 1.9 x 4.75” Tires (recommended)
• 1.9 Wheels (Vanquish Products or SLW Hub Compatible wheels required)
• Transmitter / Receiver
• Steering servo (25 spline 20mm Servo Horn included)
• 540 Motor
• ESC
• Battery (35mm x 35mm x 100mm Maximum)
• Charger
